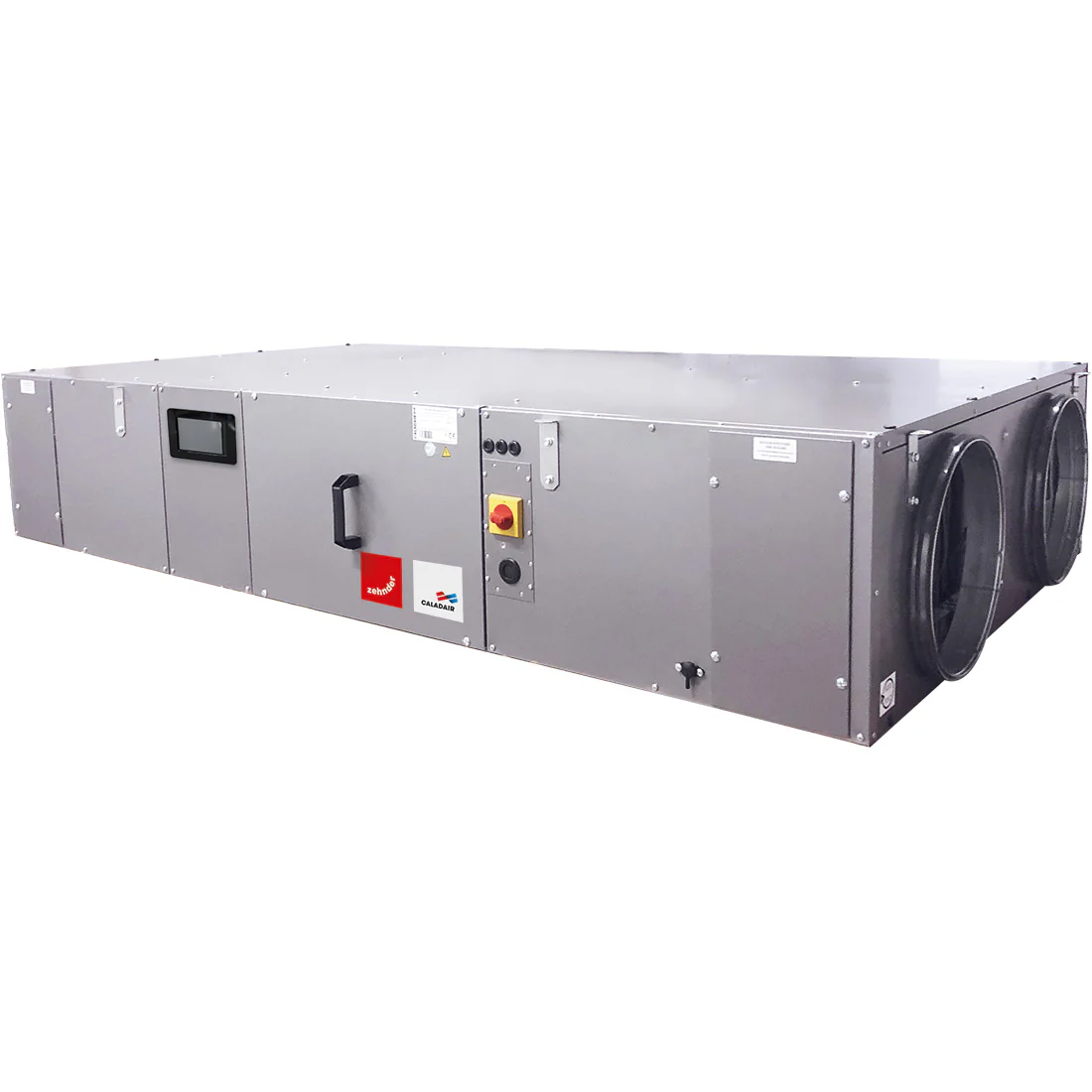

Zehnder Caladair Neotime 2500 First Eco MVHR Unit
Zehnder Caladair Neotime 2500 First Eco MVHR Unit
Product Part Number: Caladair NEOTIME 2500 First Eco - CAL05
Description
The Zehnder Caladair Neotime 2500 First Eco is a high-efficiency Mechanical Ventilation with Heat Recovery (MVHR) unit designed for commercial applications. It offers advanced zoning options, heating & cooling accessories, and intelligent controls for energy-efficient ventilation and optimal indoor air quality.
Additional Zoning Options
Optional electric duct dampers can be controlled by:
- PIR Sensor – Detects occupancy and increases airflow
- CO₂ Sensor – Detects high CO₂ levels and adjusts airflow
- Wall Switch – Manually increases airflow
- Light Sensor – Adjusts airflow when lights are switched on
- BMS (Building Management System) – Controls zoned areas and unit settings
- Dampers – Configurable to various airflow rates when open or closed
For customization and additional zoning options, contact our sales team at 028 2827 5150
Heating & Cooling Accessories
- Electric Preheater – Prevents frost buildup
- Electric Post Heater – Increases room temperature
- Water Heater – Can be used as a pre-heater or post-heater
Controllability
A Digital Control Panel is available for independent operation without a BMS system.
LCD Controller Functions:
- Weekly timer
- Holiday timer
- Summer by-pass / Night-time cooling
- Fault finding
- Speed parameters
- Filter indicator
- Fire alarm integration
- Temperature sensors
- Integration via Modbus, Bacnet, or Web
Filtration
- 1x F7 large-capacity pollen intake filter
- 1x G4 extract filter
Construction
- Outer Construction: Airtight 10-gauge galvanized steel double-skin panels with 25mm high-density mineral wool insulation (EN1886)
- External Face: Pre-lacquered with a protective film in RAL 7035
- Connections: Circular branch connections with rubber seals, airtight construction to ATEC CSTB n° 13-224-12
- Mounting: Crimped hanging brackets for ceiling mounting
Heat Exchanger
- Highly efficient aluminium counter-flow heat exchanger providing up to 90% heat recovery
- Designed for lifetime use
Motors
- 2x low-energy, high-efficiency backward curved EC motors
- Includes heat and speed protection
Installation
- Horizontally mounted on the ceiling or floor with adjustable hanging brackets
- Ensure the structure can support the unit’s weight
- Condensate Drain: 15mm BSP metal pipe, connect to a drain via a waterless trap
Dimensions
| Model | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| Neotime 2500 | 2395 | 1740 | 495 |
Installation of Ductwork
- Recommended: Metal Spiral Ducting and fittings for superior strength
- For airtightness and durability, use self-sealing fittings or Ducting Sealant & Aluminium Duct Sealing Tape
Accessories
- A full range of controls, sensors, in-line silencers, floor/wall/ceiling inlets, and outlet diffusers are available
Guarantee
- 2-Year Parts Guarantee for peace of mind
Please Note: These units are built to order. For lead times, contact our sales team at 028 2827 5150.
Original: $13,701.94
-65%$13,701.94
$4,795.68More Images
Zehnder Caladair Neotime 2500 First Eco MVHR Unit
Zehnder Caladair Neotime 2500 First Eco MVHR Unit
Product Part Number: Caladair NEOTIME 2500 First Eco - CAL05
Description
The Zehnder Caladair Neotime 2500 First Eco is a high-efficiency Mechanical Ventilation with Heat Recovery (MVHR) unit designed for commercial applications. It offers advanced zoning options, heating & cooling accessories, and intelligent controls for energy-efficient ventilation and optimal indoor air quality.
Additional Zoning Options
Optional electric duct dampers can be controlled by:
- PIR Sensor – Detects occupancy and increases airflow
- CO₂ Sensor – Detects high CO₂ levels and adjusts airflow
- Wall Switch – Manually increases airflow
- Light Sensor – Adjusts airflow when lights are switched on
- BMS (Building Management System) – Controls zoned areas and unit settings
- Dampers – Configurable to various airflow rates when open or closed
For customization and additional zoning options, contact our sales team at 028 2827 5150
Heating & Cooling Accessories
- Electric Preheater – Prevents frost buildup
- Electric Post Heater – Increases room temperature
- Water Heater – Can be used as a pre-heater or post-heater
Controllability
A Digital Control Panel is available for independent operation without a BMS system.
LCD Controller Functions:
- Weekly timer
- Holiday timer
- Summer by-pass / Night-time cooling
- Fault finding
- Speed parameters
- Filter indicator
- Fire alarm integration
- Temperature sensors
- Integration via Modbus, Bacnet, or Web
Filtration
- 1x F7 large-capacity pollen intake filter
- 1x G4 extract filter
Construction
- Outer Construction: Airtight 10-gauge galvanized steel double-skin panels with 25mm high-density mineral wool insulation (EN1886)
- External Face: Pre-lacquered with a protective film in RAL 7035
- Connections: Circular branch connections with rubber seals, airtight construction to ATEC CSTB n° 13-224-12
- Mounting: Crimped hanging brackets for ceiling mounting
Heat Exchanger
- Highly efficient aluminium counter-flow heat exchanger providing up to 90% heat recovery
- Designed for lifetime use
Motors
- 2x low-energy, high-efficiency backward curved EC motors
- Includes heat and speed protection
Installation
- Horizontally mounted on the ceiling or floor with adjustable hanging brackets
- Ensure the structure can support the unit’s weight
- Condensate Drain: 15mm BSP metal pipe, connect to a drain via a waterless trap
Dimensions
| Model | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| Neotime 2500 | 2395 | 1740 | 495 |
Installation of Ductwork
- Recommended: Metal Spiral Ducting and fittings for superior strength
- For airtightness and durability, use self-sealing fittings or Ducting Sealant & Aluminium Duct Sealing Tape
Accessories
- A full range of controls, sensors, in-line silencers, floor/wall/ceiling inlets, and outlet diffusers are available
Guarantee
- 2-Year Parts Guarantee for peace of mind
Please Note: These units are built to order. For lead times, contact our sales team at 028 2827 5150.
