204x60mm - Double airbrick with grille (White) - VP
Product Part Number
VKC5633G-W
Description

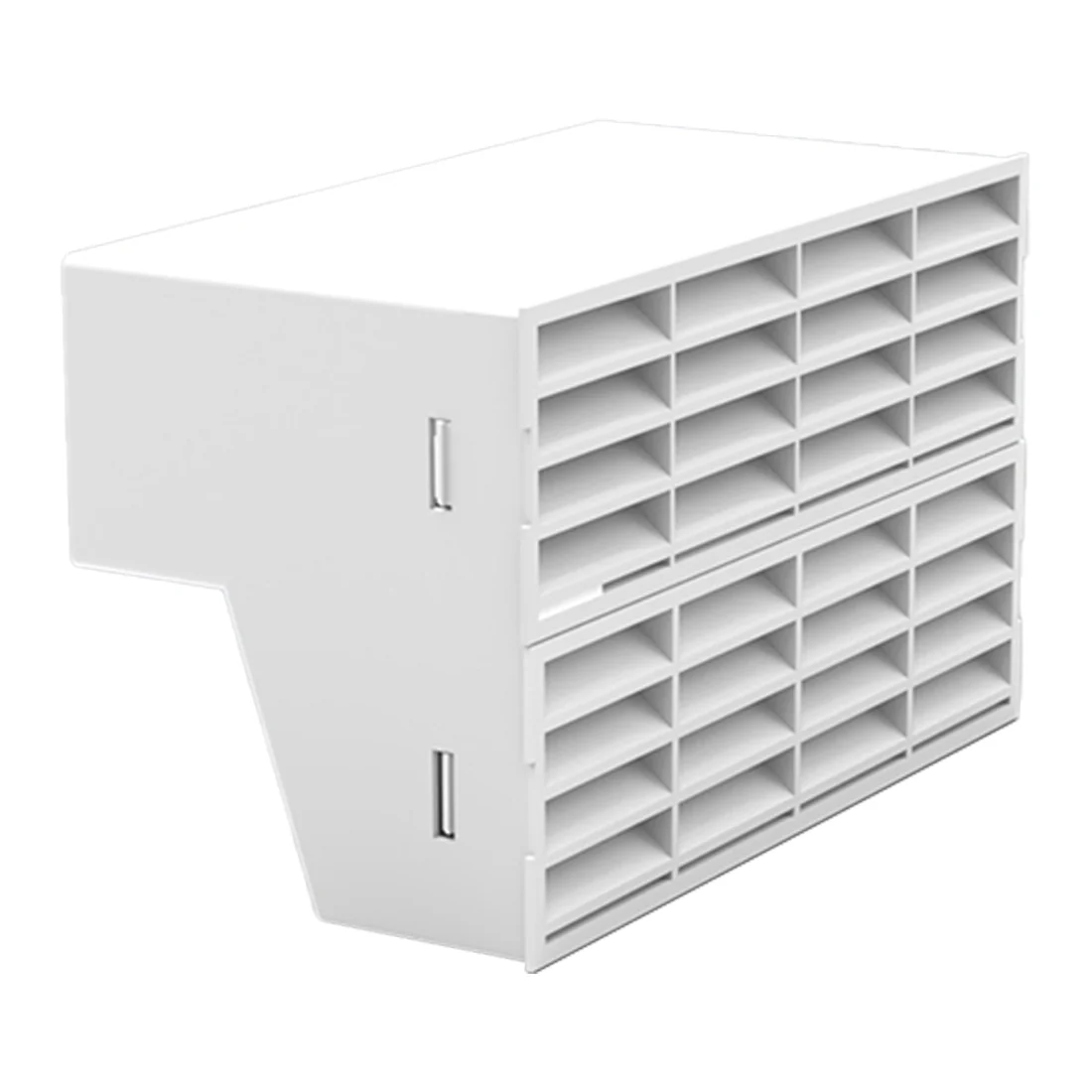

The 204 x 60 mm Rectangular Double Airbrick Adaptor with Grilles is constructed from high-quality white High Impact Polystyrene and provides a minimum free area of 15,360 mm². It includes a female adaptor for external connection to the System 204 ducting range.
Designed for use in both extract and Mechanical Heat Recovery Ventilation (MVHR) systems, the VKC5633G-W is fully compliant with SAP Appendix Q Product Characteristics Database recommendations for duct sizing. The product is also manufactured in accordance with the Domestic Plastic Ductwork Specification DW/154 and meets the UL94HB flammability standard for safety.
Engineered specifically for use with the Verplas System 204, this adaptor supports efficient airflow and system performance.
Technical Specification:
Dimensions: 204 mm x 60 mm
Material: High Impact Polystyrene
Weight: 258 g
Original: $10.46
-65%$10.46
$3.66204x60mm - Double airbrick with grille (White) - VP
Product Part Number
VKC5633G-W
Description
The 204 x 60 mm Rectangular Double Airbrick Adaptor with Grilles is constructed from high-quality white High Impact Polystyrene and provides a minimum free area of 15,360 mm². It includes a female adaptor for external connection to the System 204 ducting range.
Designed for use in both extract and Mechanical Heat Recovery Ventilation (MVHR) systems, the VKC5633G-W is fully compliant with SAP Appendix Q Product Characteristics Database recommendations for duct sizing. The product is also manufactured in accordance with the Domestic Plastic Ductwork Specification DW/154 and meets the UL94HB flammability standard for safety.
Engineered specifically for use with the Verplas System 204, this adaptor supports efficient airflow and system performance.
Technical Specification:
Dimensions: 204 mm x 60 mm
Material: High Impact Polystyrene
Weight: 258 g
